0-12m/Min Sheet Metal Roll Forming Machines Material PPGI , Color Steel , GI
| Place of Origin | WUXI CHINA |
|---|---|
| Brand Name | LONGBO |
| Certification | CE; ISO9001 |
| Model Number | LB-1220-1250-1000 |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | water proof package |
| Delivery Time | 60 days |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 5 per month |
Product Details
| Guarantee | 5 Years | Color | To Be Customized |
|---|---|---|---|
| Material Of Rollers | #45 | Input Sheet Thickness | 0.3~0.8mm |
| Hydraulic Cutting | Hdyraulic Press And Cutting | Hardness | HRC58~62 Degree |
| High Light | roof tile roll forming machine,roof sheet making machine |
||
Product Description

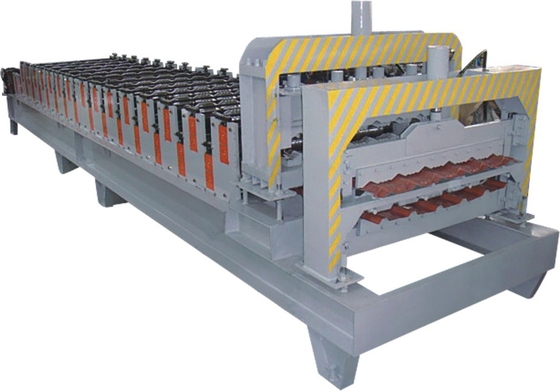

0-12m/min Forming Speed Tile Roll Forming Machine With Material PPGI, Color Steel, GI
Feature of Tile Roll Forming Machine
- Different Glazed tile roll forming machines can produce different shapes of steel tile roof sheets in various thickness and colors. Steel tile roof sheets are the new substitutes for traditional clayey, concrete tiles. They are popular because of their low cost, short building period, re-cycle use, and elegant appearance. They are used a sthe roof of villas, luxury houses, theatres, exhibition centers, etc.
- This Glazed Tile Roll Forming Machine can rollform metal roof tiles. After roll formed by this glazed roof tile roll forming machine, the surface of metal roof glazed tile is very smooth and beautiful without any scratch on the surface of tile profile sheets.
- The Steel Glazed Roof Tile Roll Forming Machine is with fully automatic control system with PLC.
- Length, quantity of sheets is adjustable.
Components
Decoiler --------------------------------------------- -1 Unit
Feeding guide -------------------------------------- 1 Unit
Main roll forming machine ------------------------ 1 Unit
Hydraulic pressing device -------------------------1 Unit
Hydraulic cutting device --------------------------- 1 Unit
Hydraulic Station ------------------------------------ 1 Unit
PLC computer control ------------------------------ 1 Unit
Output tables ----------------------------------------- 2 Units
Technical Specification
| PLC Frequency Control Metal Roof Tile Making Machine For Material Thickness 0.3-0.8mm | ||
| Material | Thickness | 0.3-0.8mm |
| Coil Width | Custom-made | |
| Yield Strength | 250-300 Mpa | |
| Material | PPGI,Color Steel,GI | |
| Decoiler/Uncoiler | Uncoiler Type | Manual or Hydraulic or Auto Type |
| Coil Width | Max. 1250mm | |
| I.D | 508-610mm | |
| O.D | Max. 1500mm | |
| Tile Roll Forming Machine | Forming Stations | 13-18 Stations ( Depend on Profiles ) |
| Roller material | 45# steel, surface coated with 0.05mm hard chrome | |
| Diameter of shaft | 76mm | |
| Shaft material | High grade 45# steel | |
| Drive type | Chain transmission | |
| Forming speed | 0-15m/min | |
| Main power | 5.5KW | |
| Cutting Device | Cutting type | Hydraulic cutting |
| Cutting Die Material | Cr12Mov steel, HRC58-62 | |
| CuttingTolerance | 10m+/-1.5mm | |
| Encoder | OMRON Brand | |
| Hydraulic Station | Hydraulic station | Famous Chinese brand |
| Hydraulic Power | 5.5KW | |
Work Flowing
Decoiler ---> Fedding Guide ---> Tile Roll Forming ---> Pressing ---> Cut-to-length ---> Run out table
Application
Glazed tile, Roof Tile, Metal roof tile; steel roof tile; color steel tile; color glazed tile; wave tile; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding
