PLC Control Metal Roof Tile Making Machine Thickness 0.3 - 0.8mm
| Place of Origin | WUXI CHINA |
|---|---|
| Brand Name | LONGBO |
| Certification | CE; ISO9001 |
| Model Number | LB-1000-914 |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | water proof package |
| Delivery Time | 60 days |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 4 per month |
Product Details
| Material | PPGI | Input Sheet Thickness | 0.3~0.8mm |
|---|---|---|---|
| Guarantee | 5 Years | Rollers Material | #45 |
| Hardness | HRC58~62 Degree | Decoiler | 5 Tons Capacity, Hydraulic |
| Color | To Be Customized | ||
| High Light | roof tile roll forming machine,glazed tile roll forming machine |
||
Product Description

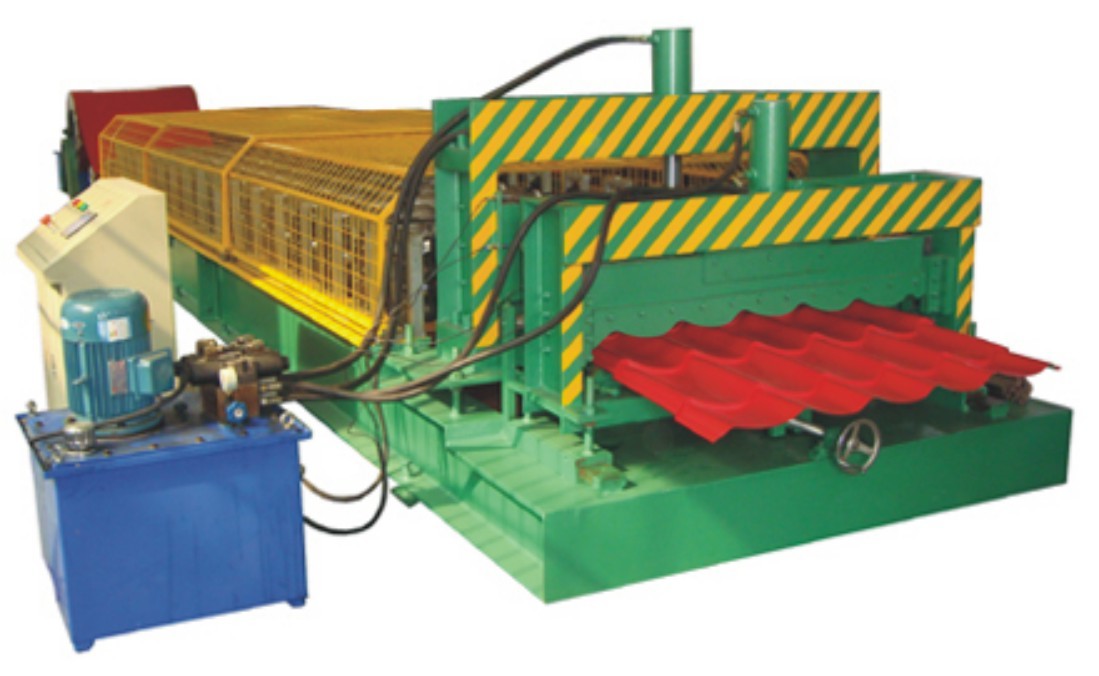

PLC Frequency Control Metal Roof Tile Making Machine For Material Thickness 0.3-0.8mm
Main Specification
| PLC Frequency Control Metal Roof Tile Making Machine For Material Thickness 0.3-0.8mm | |
| Material thickness | 0.3-0.8mm |
| Weight Capacity Of Decoiler | 5 Ton Manual Decoiler or Hydraulic Decoiler |
| Main Motor Power | 5.5KW |
| Hydraulic Motor Power | 5.5 Kw |
| Axis Diameter | ¢ 76mm |
| Working Speed | 0-5 m/min |
| Transporting Type | Chain Transmission |
| Material Of Cutting Blade | C r 12 |
| Forming Stations | About 13 Steps |
| Coil Thickness | 0.3-0.6mm |
| Weight of Machine | About 6.8 Ton |
| Dimension of Main Forming Machine | About 11000mmX1500mmX1400mm (LxWxH) |
Product Description
- This tile roll forming machine suits for coiled metal material, make required shape after processing of uncoiling, forming continuously pressing and cutting to length. Adopt PLC controlling system, AC frequency adjusting-speed technology, so that realize automatic production continuously
- Different steel roof tile roll forming machines can produce different shapes of steel tile roof sheets in various thickness and colors. Steel tile roof sheets are the new substitutes for traditional clayey, concrete tiles. They are popular because of their low cost, short building period, re-cycle use, and elegant appearance. They are used a sthe roof of villas, luxury houses, theatres, exhibition centers, etc.
- The Steel Glazed Roof Tile Roll Forming Machine is with fully automatic control system with PLC.
- Length, quantity of sheets is adjustable.
- Rollforming process: Decoiler, Rollforming, Pressing & Cut to length.
- Easy operation: Key in the length and quantity on the control panel.
- We also can do a custom roll forming machine, we can design machines according to your specifications and profile drawings, all our machines are customized.
Application
Glazed tile, Roof Tile, Metal roof tile; steel roof tile; color steel tile; color glazed tile; wave tile; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding
Work Flowing
Decoiler ---> Fedding Guide ---> Roof Tile Roll Forming ---> Pressing ---> Cut-to-length ---> Run out table
Components

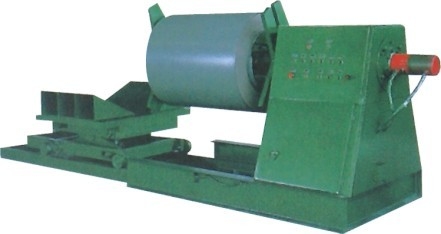

Decoiler ---------------------------------------------- 1 Unit
Feeding guide -------------------------------------- 1 Unit
Main roll forming machine ------------------------ 1 Unit
Hydraulic pressing device -------------------------1 Unit
Hydraulic cutting device --------------------------- 1 Unit
Hydraulic Station ------------------------------------ 1 Unit
PLC computer control ------------------------------ 1 Unit
Output tables ---------------------------------------- 2 Units
