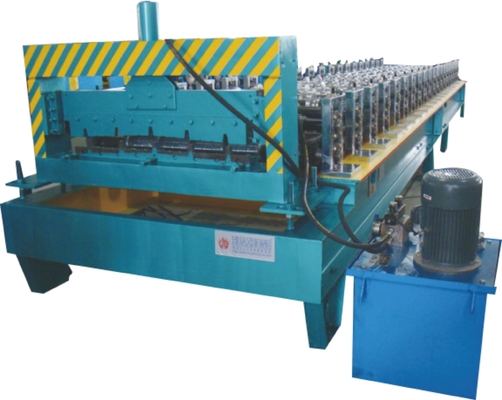

Color Steel Glazed Tile Roll Forming Machine with PLC Control
| Place of Origin | WUXI CHINA |
|---|---|
| Brand Name | LONGBO |
| Certification | CE; ISO9001 |
| Model Number | LB-1000-1220-1250 |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | water proof package |
| Delivery Time | 60 days |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 5 per month |
Product Details
| Guarantee | 5 Years | Material | PPGI And Galvanized Steel |
|---|---|---|---|
| Input Sheet Thickness | 0.3~0.7mm | Material Of Rollers | #45 |
| Diameter Of Shaft | 80mm | Hardness | HRC58~62 Degree |
| After Sales Service | Send Tehcnician To Buyer's Factory Immediately When Machines Arrives | ||
| High Light | roof sheet making machine,glazed tile roll forming machine |
||
Product Description
Color Steel Glazed Tile Roll Forming Machine with PLC Computer Control to Europe
Main Specifications of Glazed Tile Roll Forming Machine
| Machine Name | Glazed Tile Roll Forming Machine | |
| Material | Thickness | 0.3-0.7mm |
| Coil width | Custom-made, 1000mm or 1200mm or 1250mm | |
| Yield Strength | 250-300 Mpa | |
| Material | PPGI, Color Steel, GI. | |
| Decoiler / Uncoiler | Uncoiler Type | Manual or Hydraulic or Auto Type |
| Coil Width | Max. 1250mm | |
| I.D | 508-610mm | |
| O.D | Max. 1500mm | |
| Glazed Tile Roll Forming Machine | Forming Stations | 13-18 Stations ( Depend on Profiles ) |
| Roller material | 45# steel, surface coated with 0.05mm hard chrome | |
| Diameter of shaft | 76mm | |
| Shaft material | High grade 45# steel | |
| Drive type | Chain transmission | |
| Forming speed | 0-15m/min | |
| Main power | 5.5KW | |
| Pressing Device | Pressing Type | Hydraulic type pressing |
| Pressing Mould | Cr12 Mov steel, HRC58-62 | |
| Cutting Device | Cutting type | Hydraulic cutting |
| Cutting Die Material | Cr12Mov steel, HRC58-62 | |
| CuttingTolerance | 10m+/-1.5mm | |
| Encoder | OMRON Brand | |
| PLC Electrical Control Board | PLC | PANASONIC Brand |
| Inverter | YASKAWA Brand | |
| Touch screen | PANASONICE | |
| Operation type | Touch screen & Button | |
| Hydraulic Station | Hydraulic station | Famous Chinese brand |
| Hydraulic Power | 5.5KW | |
| Runout Tables | Table type | Simple nonpower type |
| Function | To support the finished panels | |
Characteristic of Glazed Tile Roll Forming Machine
- This Color Steel Glazed Tile Roll Forming Machine can rollform metal roof tiles. After roll formed by this glazed roof tile roll forming machine, the surface of metal roof glazed tile is very smooth and beautiful without any scratch on the surface of tile profile sheets.
- The Steel Glazed Roof Tile Roll Forming Machine is with fully automatic control system with PLC.
- Rollforming process: Decoiler, Rollforming, Pressing & Cut to length.
- Easy operation: Key in the length and quantity on the control panel.
- Length, quantity of sheets is adjustable.
- 1 Year warranty, lifelong time service.
- We also can do a custom roll forming machine, we can design machines according to your specifications and profile drawings, all our machines are customized.
Components of Glazed Tile Roll Forming Machine
| Decoiler / Uncoiler | 1 Unit |
| Feeding Guide | 1 Unit |
| Main Glazed Tile Roll Forming Machine | 1 Unit |
| Hydraulic Pressing for Step | 1 Unit |
| Hydraulic Cutting System | 1 Unit |
| Hydraulic Station | 1 Unit |
| PLC Computer Control Box | 1 Unit |
| Support Tables | 2 Units |
Layout Drawing
Application
Glazed tile, Roof Tile, Metal roof tile; steel roof tile; color steel tile; color glazed tile; wave tile; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding
TECHWELL Advantage
- High Quality
- Reasonable Price
- Good after Service
- 1 Year Warranty
- More Than 10 Years Experience
- Copra designing software
- 5-8 technicians every month specially do international installation and debugging.
