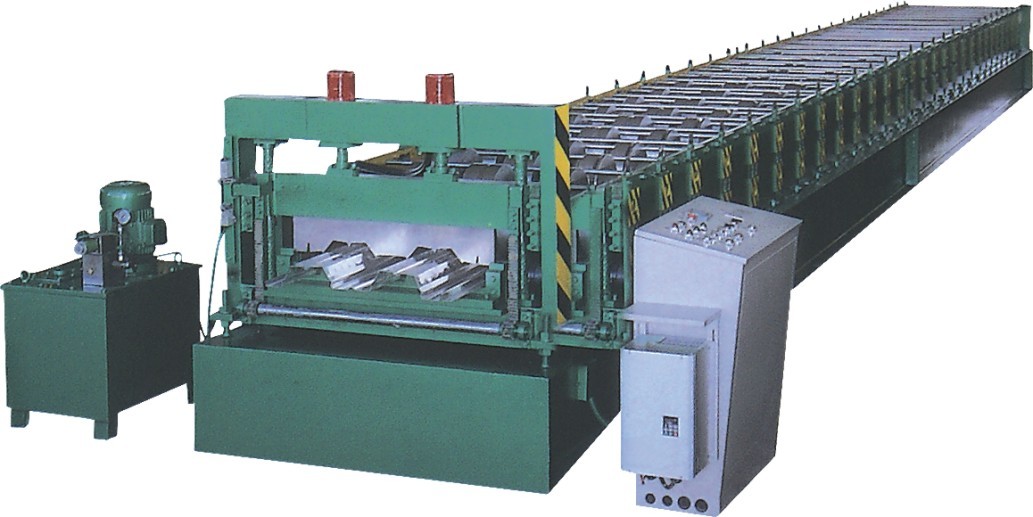

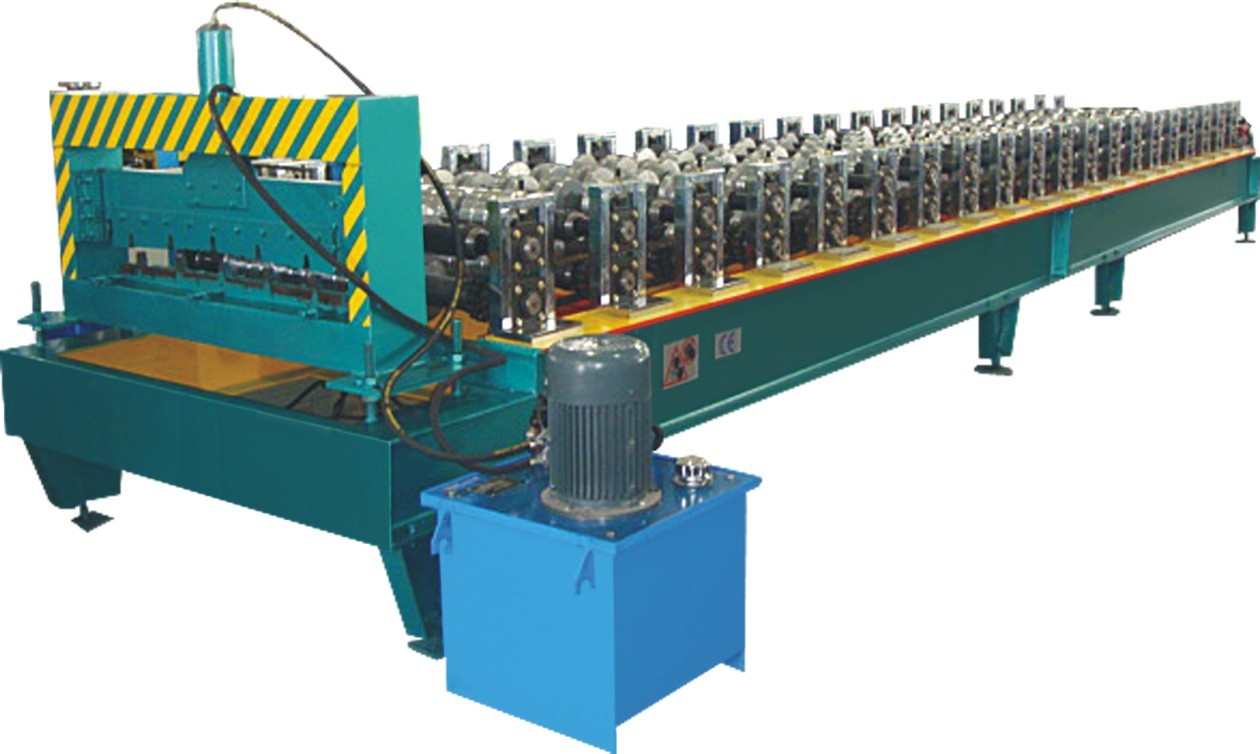

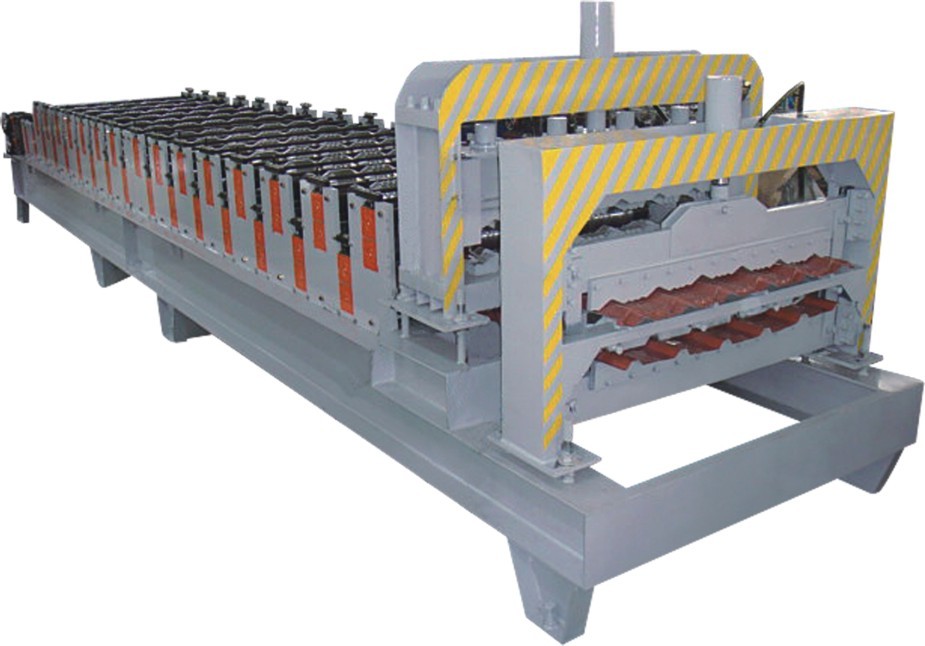

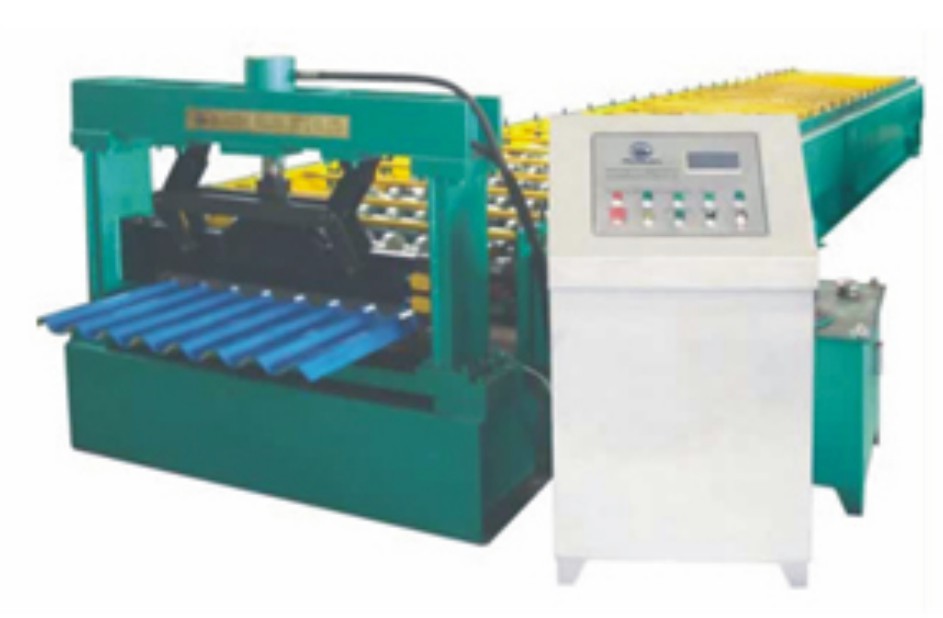

Steel Roof Sheet Making Machine With PLC Touch Screen Control

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin WUXI CHINA
Brand Name LONGBO
Certification CE; ISO9001
Model Number LB-400-500-600
Minimum Order Quantity 1 set
Price negotiation
Packaging Details water proof package
Delivery Time 50 days
Payment Terms L/C, D/P, T/T
Supply Ability 6 per month
Product Details
Guarantee 5 Years Material PPGI
Material Of Rollers #45 Hardness HRC58~62 Degree
After Sales Service Send Technician To Buyer's Factory To Fix It Immediately Color To Be Customized
High Light

roof tile roll forming machine

,

glazed tile roll forming machine
Leave a Message
Product Description

Material Thickness 0.3-0.7mm Roof Tile Making Machine With PLC Touch Screen Control





Main Specifications



Material Thickness 0.3-0.7mm Roof Tile Making Machine With PLC Touch Screen Control
Material thickness 0.3-0.7mm
Weight Capacity Of Decoiler 5 Ton
Main Motor Power 5.5KW
Hydraulic Motor Power 5.5 Kw
Axis Diameter ¢ 75mm
Working Speed 0-5 m/min
Transporting Type Chain Transmission
Material Of Cutting Blade C r 12
Forming Station 13-18(Depend On Profile Drawing)
Material of Roller High grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface
Main Axis Material High grade 45#, quenched and heat treatment



Product Brand



  • Electrical Control: PLC Frequency Control System with Touch Screen
  • PLC: PANASONIC Brand
  • Encoder: OMRON Brand
  • Transducer: YASKAWA Brand



Main Parts



Decoiler --------------------------------------------- -1 Unit

Film covering device ------------------------------ 1 Unit

Feeding guide -------------------------------------- 1 Unit

Main roll forming machine ------------------------ 1 Unit

Hydraulic pressing device -------------------------1 Unit

Hydraulic cutting device --------------------------- 1 Unit

Hydraulic Station ----------------------------------- -1 Unit

PLC computer control ------------------------------ 1 Unit

Output table ---------------------------------------- --1 Unit



Working Flow



Decoiler ---> Fedding Guide ---> Roll Forming ---> Pressing ---> Cut-to-length ---> Run out table



Main Feature



  • This Roof Tile Roll Forming Machine can rollform metal roof tiles. After roll formed by this tile roll forming machine, the surface of metal tile is very smooth and beautiful without any scratch on the surface of tile profile sheets.
  • The Steel Roof Tile Roll Forming Machine is with fully automatic control system with PLC.
  • Length, quantity of sheets is adjustable.
  • Rollforming process: Decoiler, Rollforming, Pressing & Cut to length.
  • Easy operation: Key in the length and quantity on the control panel.
  • 1 Year warranty, lifelong time service.
  • We also can do a custom roll forming machine, we can design machines according to your specifications and profile drawings, all our machines are customized.



Application



Glazed tile, Roof Tile, Metal roof tile; steel roof tile; color steel tile; color glazed tile; wave tile; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding



Advantages



  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience
  • Copra designing software
  • 5-8 technicians every month specially do international installation and debuggingSteel Roof Sheet Making Machine With PLC Touch Screen Control 0Steel Roof Sheet Making Machine With PLC Touch Screen Control 1Steel Roof Sheet Making Machine With PLC Touch Screen Control 2Steel Roof Sheet Making Machine With PLC Touch Screen Control 3
