Double Press Step Roof Tile Roll Forming Machine Touch Screen , HRC 50 - 60

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin WUXI CHINA
Brand Name LONGBO
Certification CE; ISO9001
Model Number LB-1219-1000
Minimum Order Quantity 1 set
Price negotiation
Packaging Details water proof package
Delivery Time 70 days
Payment Terms L/C, D/P, T/T
Supply Ability 3 per month
Product Details
Material PPGI And GI Rollers Material #45
Hardness HRC58~62 Degree, Chromed Guarantee 5 Years
After Sales Service Send Technician To Buyer's Factory Immediately Color To Be Customized
High Light

roof sheet making machine

,

glazed tile roll forming machine
Leave a Message
Product Description

Main Specifications of Step Tile Roll Forming Machine



  1. Material thickness: 0.4-0.7mm,Color Steel, Galvanised coil
  2. Material width: depend on customer’s requirement
  3. Decoiler Type: manual or automatical type ( depend on customer’s requirement )
  4. Weight Capacity Of Decoiler: 5 Ton
  5. Main Motor Power: 5.5 Kw
  6. Hydraulic Motor Power: 11 Kw
  7. Forming Station: 13-16 ( depend on profile drawing )
  8. Material of Roller: High grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface.
  9. Main Axis Material: High grade 45#, quenched and heat treatment.
  10. Axis Diameter: ¢ 75mm
  11. Forming Speed: 0-15 m/min
  12. Transporting Type: Chain Transmission
  13. Heat Treatment of Cutting Blade: HRC 50-60
  14. Type of Cutting: Hydraulic cutting
  15. Material Of Cutting Blade: C r 12
  16. Heat Treatment of Cutting Blade: HRC 50-60
  17. Machine Frame stand: Welded structural steel
  18. Thickmess of Fame Steel: 18mm
  19. Electrical Control: PLC Frequency Control System with touch screen
  20. PLC: PANASONIC Brand
  21. Encoder: OMRON Brand
  22. Transducer: PANASONIC Brand
  23. Machine Weight: about 8.5 Ton



Machine Components



  1. Decoiler ---------------------------------------------------------------------------------------------- 1 Unit
  2. Film covering device ------------------------------------------------------------------------------ 1 Unit
  3. Feeding guide --------------------------------------------------------------------------------------- 1 Unit
  4. Main roll forming machine ------------------------------------------------------------------------ 1 Unit
  5. Doubel pressing device --------------------------------------------------------------------------- 1 Unit
  6. Hydraulic cutting device --------------------------------------------------------------------------- 1 Unit
  7. Hydraulic Station ------------------------------------------------------------------------------------ 1 Unit
  8. PLC computer control ------------------------------------------------------------------------------ 1 Unit
  9. Output table ------------------------------------------------------------------------------------------- 1 Unit







Tile Application



Glazed tile, Roof Tile, Metal roof tile; steel roof tile; color steel tile; color glazed tile; wave tile; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding

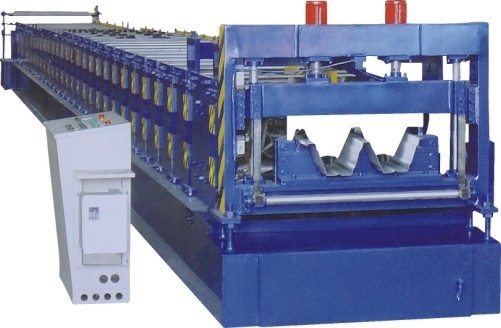

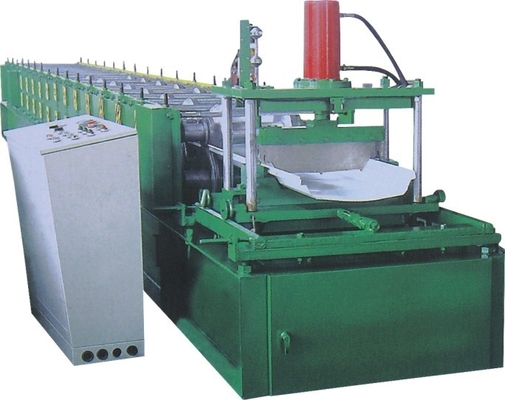

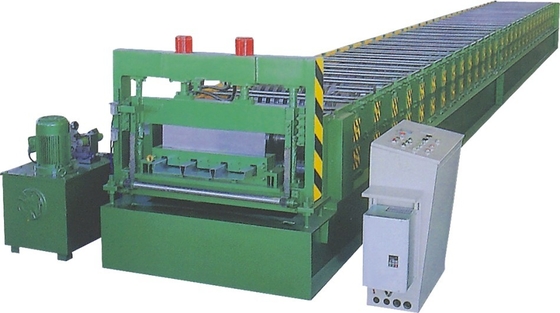

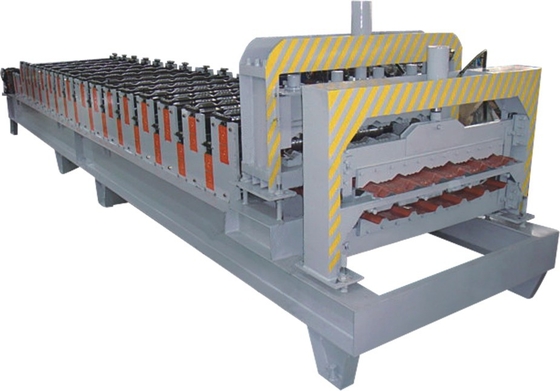

Double Press Step Roof Tile Roll Forming Machine Touch Screen , HRC 50 - 60 0Double Press Step Roof Tile Roll Forming Machine Touch Screen , HRC 50 - 60 1Double Press Step Roof Tile Roll Forming Machine Touch Screen , HRC 50 - 60 2Double Press Step Roof Tile Roll Forming Machine Touch Screen , HRC 50 - 60 3
