Custom 0.3 - 0.7mm Tile Roll Forming Machine With Double Press Mold And Hydraulic Cutting
| Place of Origin | WUXI CHINA |
|---|---|
| Brand Name | LONGBO |
| Certification | CE; ISO9001 |
| Model Number | LB-1219-1250 |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | water proof package |
| Delivery Time | 70 days |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 4 per month |
Product Details
| Warranty | 5 Years | Material | PPGI And GI |
|---|---|---|---|
| Rollers Material | #45 | Hardness | HRC58~62 Degree , Chromed |
| Diameter Of Shaft | 80mm | Decoiler | 10 Tons Capacity, Hydraulic With Coil Car |
| High Light | roof tile roll forming machine,glazed tile roll forming machine |
||
Product Description
Custom 0.3 - 0.7mm Tile Roll Forming Machine With Double Press Mold And Hydraulic Cutting
Reference Specifications of Glazed Steel Tile Roll Forming Machine
- Material thickness: 0.3-0.7mm,Color Steel, Galvanised coil
- Material width: depend on customer’s requirement
- Decoiler Type: manual or automatical type ( depend on customer’s requirement )
- Weight Capacity Of Decoiler: 10Ton
- Main Motor Power: 5.5 Kw
- Hydraulic Motor Power: 11 Kw
- Forming Station: 13-22 ( depend on profile drawing )
- Material of Roller: High grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface.
- Main Axis Material: High grade 45#, quenched and heat treatment.
- Axis Diameter: ¢ 80mm
- Forming Speed: 0-15 m/min
- Transporting Type: Chain Transmission
- Heat Treatment of Cutting Blade: HRC 58-62
- Type of Cutting: Hydraulic cutting
- Material Of Cutting Blade: C r 12
- Heat Treatment of Cutting Blade: HRC 58-62
- Machine Frame stand: Welded structural steel
- Thickmess of Fame Steel: 18mm
- Electrical Control: PLC Frequency Control System with touch screen
- PLC: PANASONIC Brand
- Encoder: OMRON Brand
- Transducer: PANASONIC Brand
- Machine Weight: about 8.5 Ton
Main Components

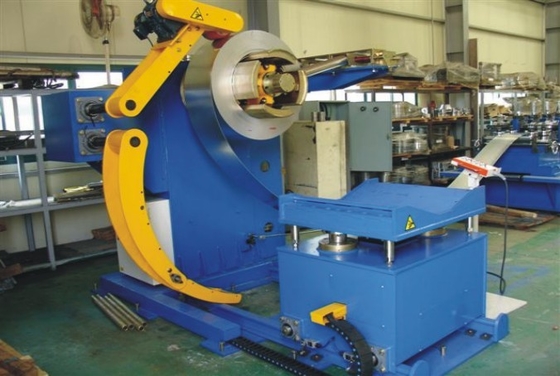

- Decoiler ---------------------------------------------------------------------------- 1 Unit
- Film covering device ------------------------------------------------------------ 1 Unit
- Feeding guide --------------------------------------------------------------------- 1 Unit

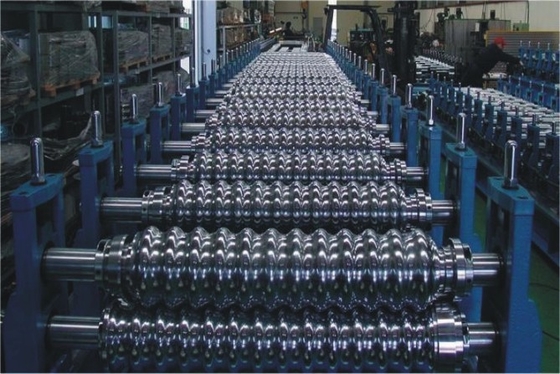

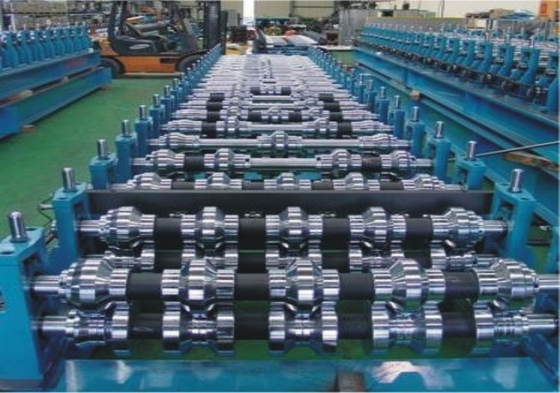

- Main roll forming machine ------------------------------------------------------ 1 Unit
- Doubl pressing device ----------------------------------------------------------- 1 Unit
- Hydraulic cutting device --------------------------------------------------------- 1 Unit
- Hydraulic Station ------------------------------------------------------------------ 1 Unit
- PLC computer control ------------------------------------------------------------ 1 Unit
- Output table ------------------------------------------------------------------------- 1 Unit
