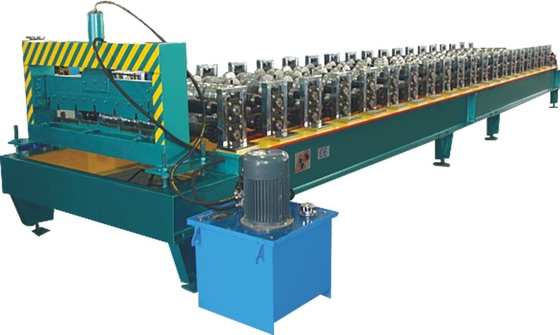

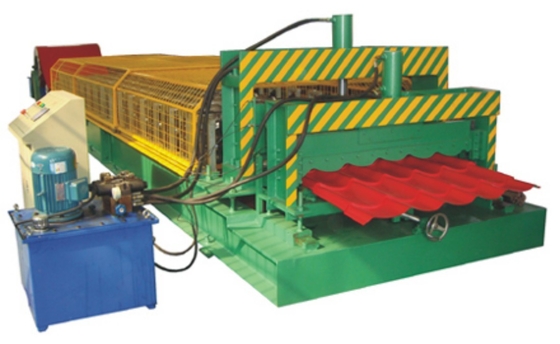

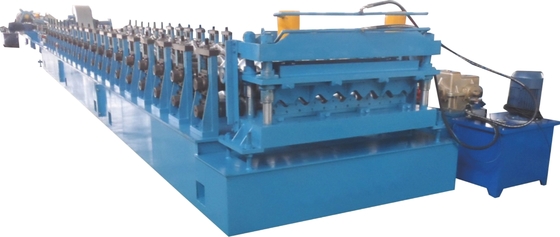

PPGI 0 - 15m / min Tile Roll Forming Machine 0.4 - 0.6mm Material Thickness

0 - 15m/min Forming Speed Roof Tile Making Machine With 0.4 - 0.6mm Material Thickness

A). Main Specification

• Material Thickness: 0.4-0.6mm,Color Steel, Galvanised coil
• Material of Roller: High grade 45# forge steel, Polished and coated with 0.05m Chrome Surface.
• Forming Speed: 0-15m/min (Not including cutting)
• Material Width: Depend on customer's requirement
• Axis Diameter: ¢ 75mm
• Working Station: 13-22 Stations (depend on profile drawing)
• Axis Material: High grade 45#, quenched and heat treatment.
• Cutting System: Hydraulic Cutting
• Material of Blade Mould: Cr12, Quenched 58-62

• Machine Frame stand: Welded structural steelThickmess of Fame Steel: 18mm

  Electrical Control	PLC Frequency Control System with touch screen
  PLC	PANASONIC Brand
  Encoder	OMRON Brand
  Inverter	YASKAWA BrandThickmess of Fame Steel: 18mm
  Electrical Control	PLC Frequency Control System with touch screen

B).Work Flowing

Decoiler --- Fedding Guide --- Film Covering --- Roll Forming --- Pressing --- Cut-to-length --- Run out table

C).Main Components

​

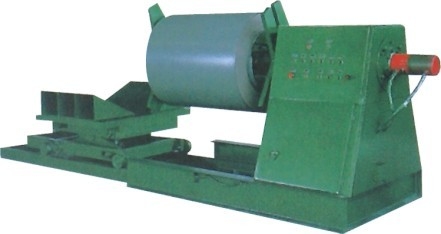

• Decoiler --------------------------------- 1 Unit
• Main roll forming machine ------------------------ 1 Unit
• Hydraulic cutting device --------------------------- 1 Unit
• Hydraulic Station ----------------------------------- 1 Unit
• PLC computer control ------------------------------ 1 Unit
• Output table ---------------------------------------- 1 Unit

D). Application

Glazed tile; Metal roof tile; steel roof tile; color steel tile; color glazed tile; wave tile;

E). Advantages

• High Quality
• Reasonable Price
• Good after Service
• 1 Year Warranty
• More Than 10 Years Experience
